Engine and alternator mounted on same frame steel skid.

Build in damper for anti-vibration.

Compact design, easy to operate and maintain.

Sino-US Googol brand engine

Top brand AC alternator

6.3/6.6/10/10.5/11kV as per requirement

Full range protections, alarms with auto shutdown features.

Comply with ISO8628 national standard and ISO9001 quality standard.

Specially designed horizontal/vertical, engine driven/electrical radiator.

Industrial, Residential silencers
Catalytic converters
Heat exchangers
Special spark arrester silencers
Standard set for "CE" certification

Sound & Weatherproof canopy optional
Spring, seismic anti-vibration mounts
Advanced facility for FAT.

123465

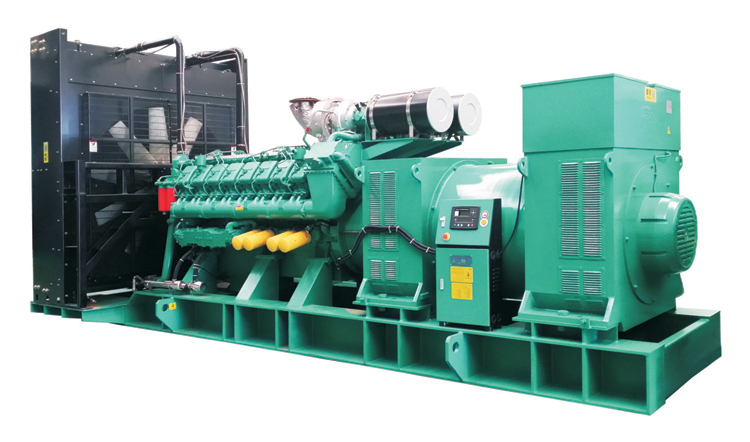

High Voltage Generator Series
Generator Model Prime Power Standby Power Engine Model Configuration Fuel Consumption Genset Size-Open Type Download Datasheet Request a Quote
HGM688HV11 500kW/625kVA 550kW/687.5kVA PTAA1340G1 12V 137 l/h 4000x1400x1900mm
HGM825HV11 600kW/750kVA 660kW/825kVA PTAA1780G1 16V 162 l/h 5000x1780x2100mm
HGM1000HV11 720kW/900kVA 800kW/1000kVA PTAA1780G5 16V 191 l/h 5000x1780x2100mm
HGM1100HV11 800kW/1000kVA 880kW/1100kVA QTA2160G1 8V 205 l/h 5200x2190x2400mm
HGM1250HV11 900kW/1125kVA 1000kW/1250kVA QTA2160G5 8V 224 l/h 5200x2190x2400mm
HGM1375HV11 1000kW/1250kVA 1100kW/1375kVA QTA3240G1 12V 249 l/h 5800x2190x2600mm
HGM1650HV11 1200kW/1500kVA 1320kW/1650kVA QTA3240G5 12V 296 l/h 5800x2190x2600mm
HGM1925HV11 1400kW/1750kVA 1540kW/1925kVA QTA3240G7 12V 332 l/h 6000x2190x2600mm
HGM2063HV11 1500kW/1875kVA 1650kW/2063kVA QTA3240G9 12V 371 l/h 6000x2190x2600mm
HGM2200HV11 1600kW/2000kVA 1760kW/2200kVA QTA4320G3 16V 379 l/h 6500x2600x2950mm
HGM2500HV11 1800kW/2250kVA 2000kW/2500kVA QTA4320G5 16V 421 l/h 7000x2600x3150mm
HGM2750HV11 2000kW/2500kVA 2200kW/2750kVA QTA4320G7 16V 495 l/h 7000x2600x3150mm
HGM2752HV11 2000kW/2500kVA 2200kW/2750kVA QTA5400G1 20V 496 l/h 8300x2600x3550mm
HGM3025HV11 2200kW/2750kVA 2420kW/3025kVA QTA5400G3 20V 547 l/h 8300x2600x3550mm
HGM3300HV11 2400kW/3000kVA 2640kW/3300kVA QTA5400G5 20V 570 l/h 8300x2600x3550mm
